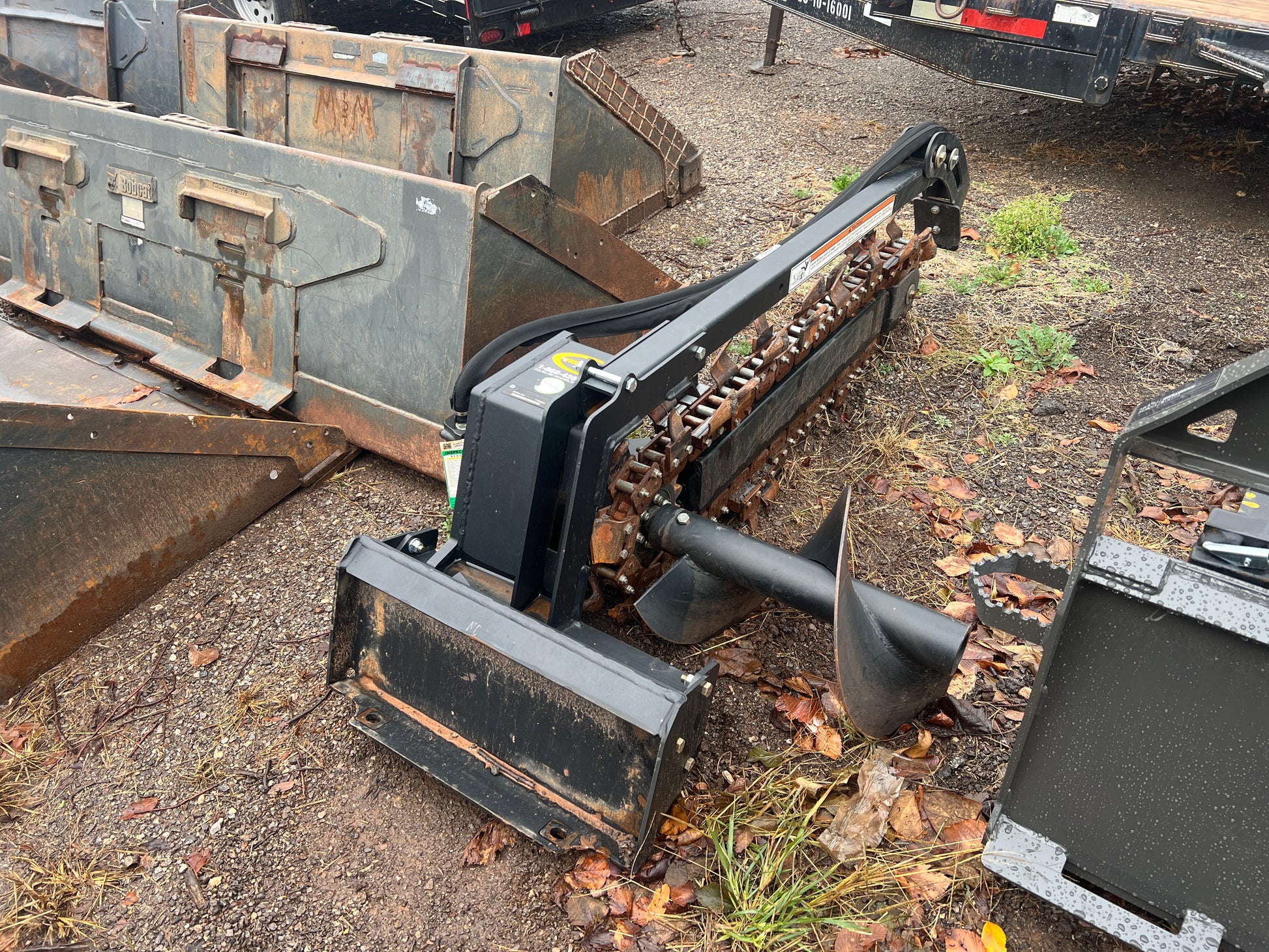

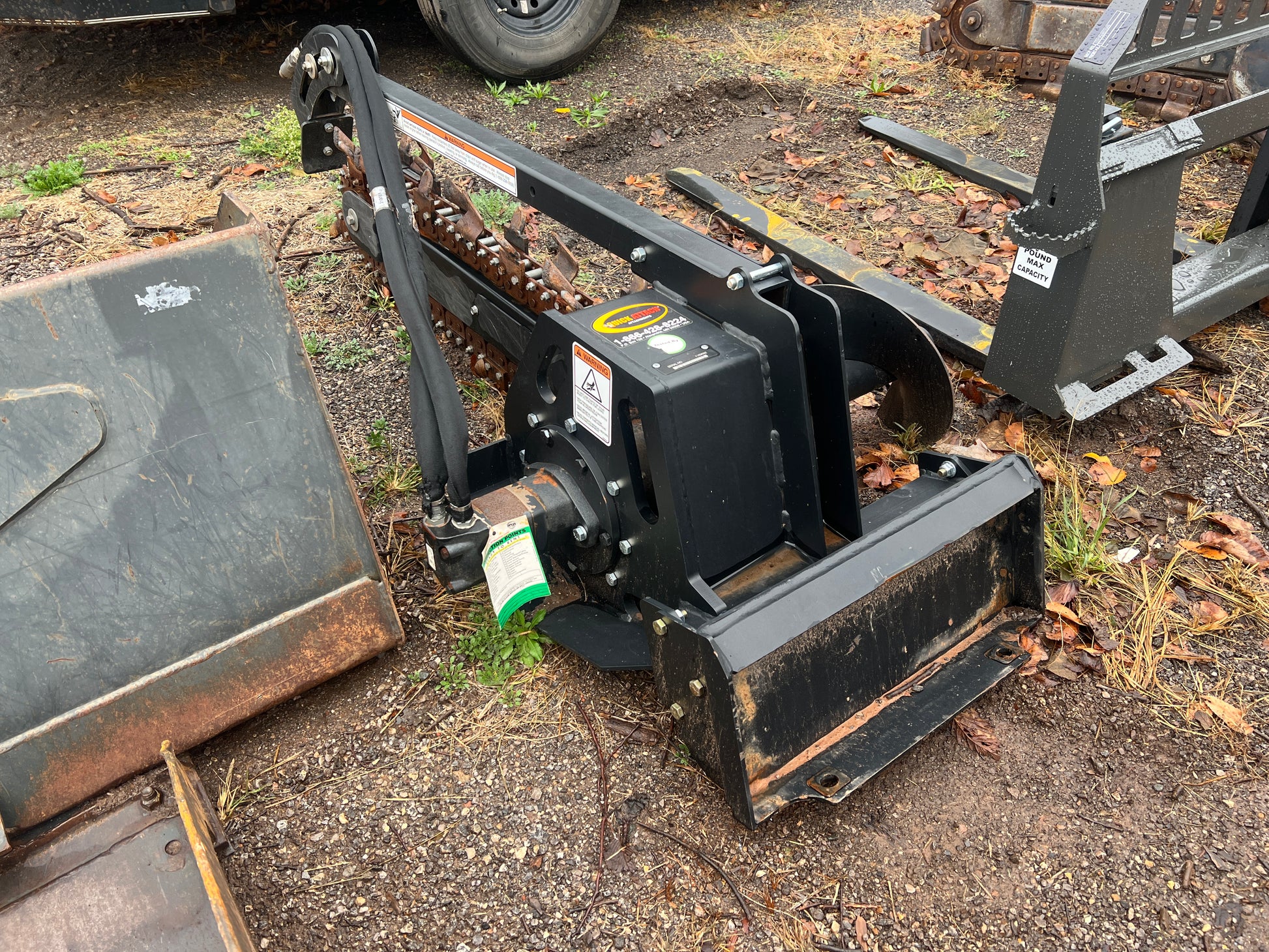

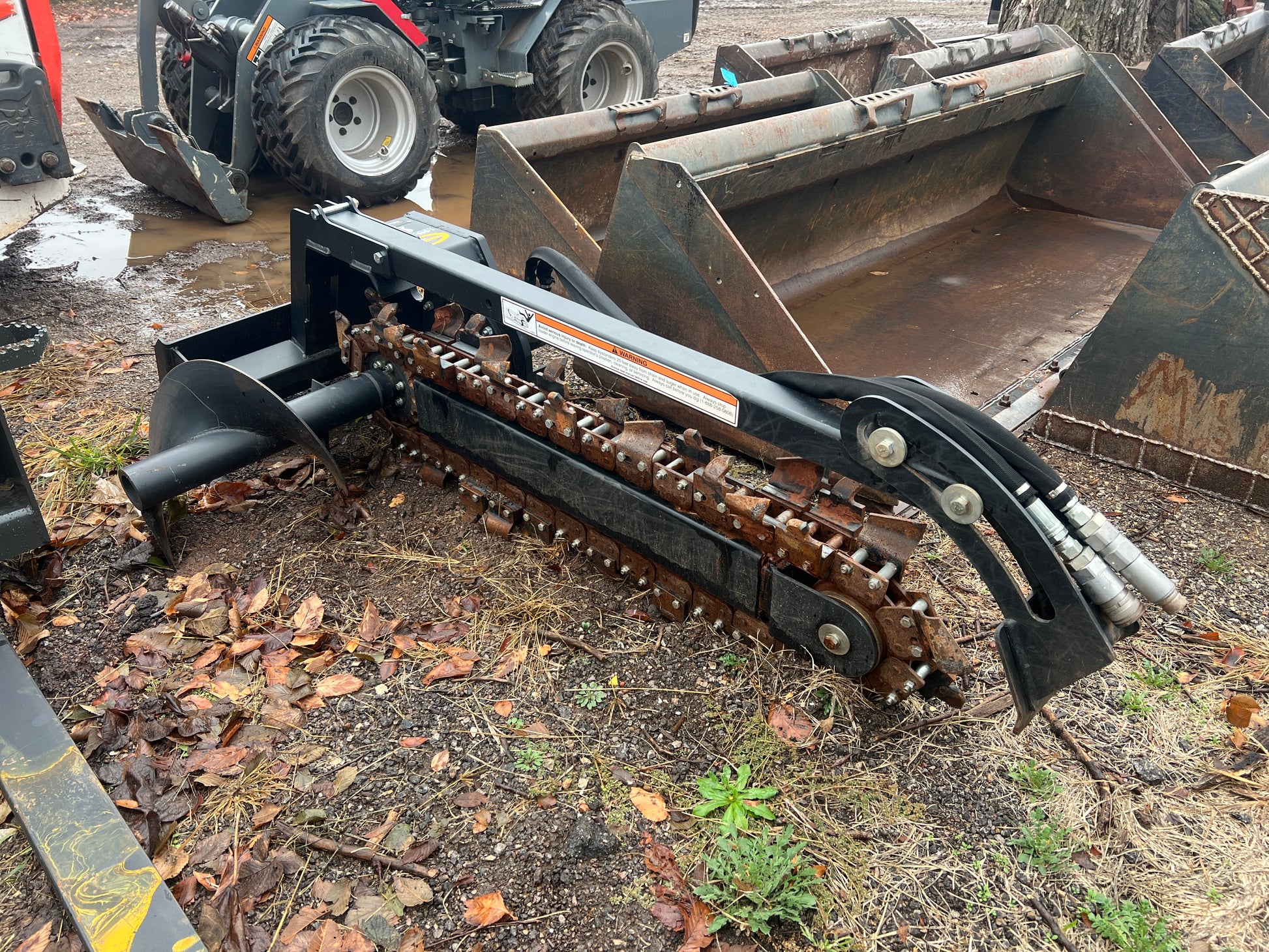

Quick Attach Mini Trencher – Mini Trench-It™

The Mini Trench-It trencher is the ultimate trench digging attachment for mini skid steers and walk-behind loaders. Engineered for fast, clean trenching performance, this attachment uses Scorpion tooth chains  to cut through hard-packed soils, clay, and rocky terrain with ease. A built-in skid shoe ensures consistent trench depth, while a removable spoil auger allows digging tight against structures, fences, foundations, and other obstacles.

Whether you're installing irrigation lines, electrical cable, drainage, or landscape edging, the Mini Trench-It provides the power, control, and precision needed to get the job done efficiently.

Key Features

• Direct-Drive Design – Efficient power transfer, low maintenance, and fewer moving parts.
• 3-Foot Boom with Removable Crumber Shoe – Improves trench cleaning and material removal for a smooth, finished cut.
• Scorpion Tooth Chain (Standard) – Cuts through compact soil conditions for maximum performance.
• Removable 12-Inch Spoil Auger – Quickly clears soil from the trench and can be removed for side-access trenching.
• Built-In Skid Shoe – Automatically controls trench depth for consistent digging.
• Designed for Mini Skid Steers & Walk-Behind Machines – Compact, lightweight, and maneuverable on tight job sites.
• Universal Mounting Plate Option Available – Accepts multiple coupler models for compatibility.

Specifications

• Height: 24”
• Length: 79.38”
• Overall Width: 40.38”
• Weight: 600 lbs
• Trenching Depth: 38”
• Shaft Speed: 85 – 185 RPM
• Hydraulic Flow Requirements: 7 – 15 GPM
• Operating Pressure: 2,000 – 3,000 PSI
• Mounting: ASV/Terex RC-PT30, Bobcat MT-52/55, 463/S70, Toro, Vermeer, Boxer, Ditch Witch, Ramrod, Kanga, Cormidi, Universal up to 1,000 lb ROC
• Included Chain Type: Scorpion Tooth Chain (Standard)

Ideal Uses

• Irrigation & sprinkler system installation
• Electrical line trenching
• Drainage & French drain work
• Tree / landscape edging installations
• Underground utility line placement

Contact Stockyards City Equipment & Rental for pricing, availability, and attachment options.
