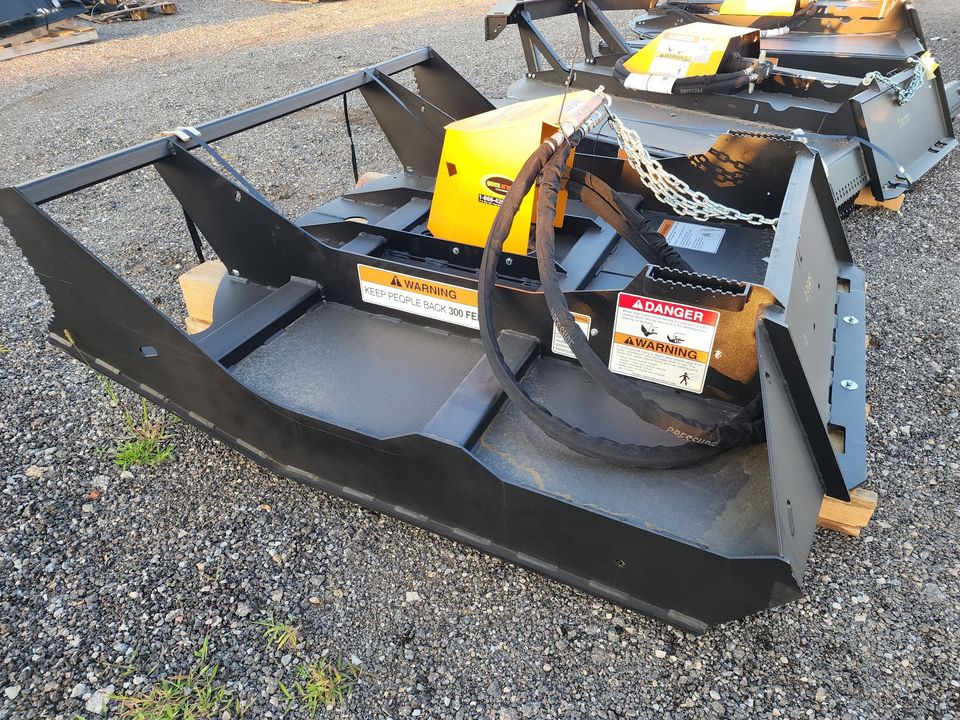

Quick Attach 72" Hi-Flow Mega-X Brush Cutter / Shredder
Quick Attach 72" Hi-Flow Mega-X Brush Cutter / Shredder
Regular price
$9,999.00 USD
Regular price
$11,499.00 USD
Sale price
$9,999.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Piston MotorDirect DriveCutting Capacity10"Mulching TeethReplaceable |
72" High-Flow | 78" High-Flow |
|---|---|---|
| Part Number | 902085 | 902087 |
| Bearing Carrier Weight | 80 lbs. | 80 lbs. |
| Blade Carrier Thickness | 3/4" Grade 50 Steel | 3/4" Grade 50 Steel |
| Blade System Energy | 106,179 ft/lbs @ 25 GPM & 124,062 ft/lbs @ 40 GPM | 79,363 ft/lbs @ 25 GPM & 126,411 ft/lbs @ 40 GPM |
| Blade System Mass | 340 lbs. | 378 lbs. |
| Case Drain | X | X |
| Cutting Width | 72" | 78" |
| Energy Stored In Blades | 0.32 | 0.32 |
| Height | 27" | 27" |
| Hydraulic Flow Requirements | 25-41 GPM (High Flow) | 25-41 GPM (High Flow) |
| Length | 77.5" | 83.5" |
| Maximum Pressure | 4661 | 4661 |
| Number Of Blades | (4) 1/2" AR400 16" Long | (4) 1/2" AR400 17.5" Long |
| Number Of Carbides | 12 | 12 |
| Operating Weight | 1,380 lb. | 1,520 lb. |
| Output Bearing Size | 2.875" | 2.875" |
| Overall Width | 76" | 82" |
| Tip Speed | 11,960 ft/min @ 25 GPM & 19,140 ft/min @ 40 GPM | 11,680 ft/min @ 25 GPM & 18,700 ft/min @ 40 GPM |
| Wire Catchers | Yes | Yes |
