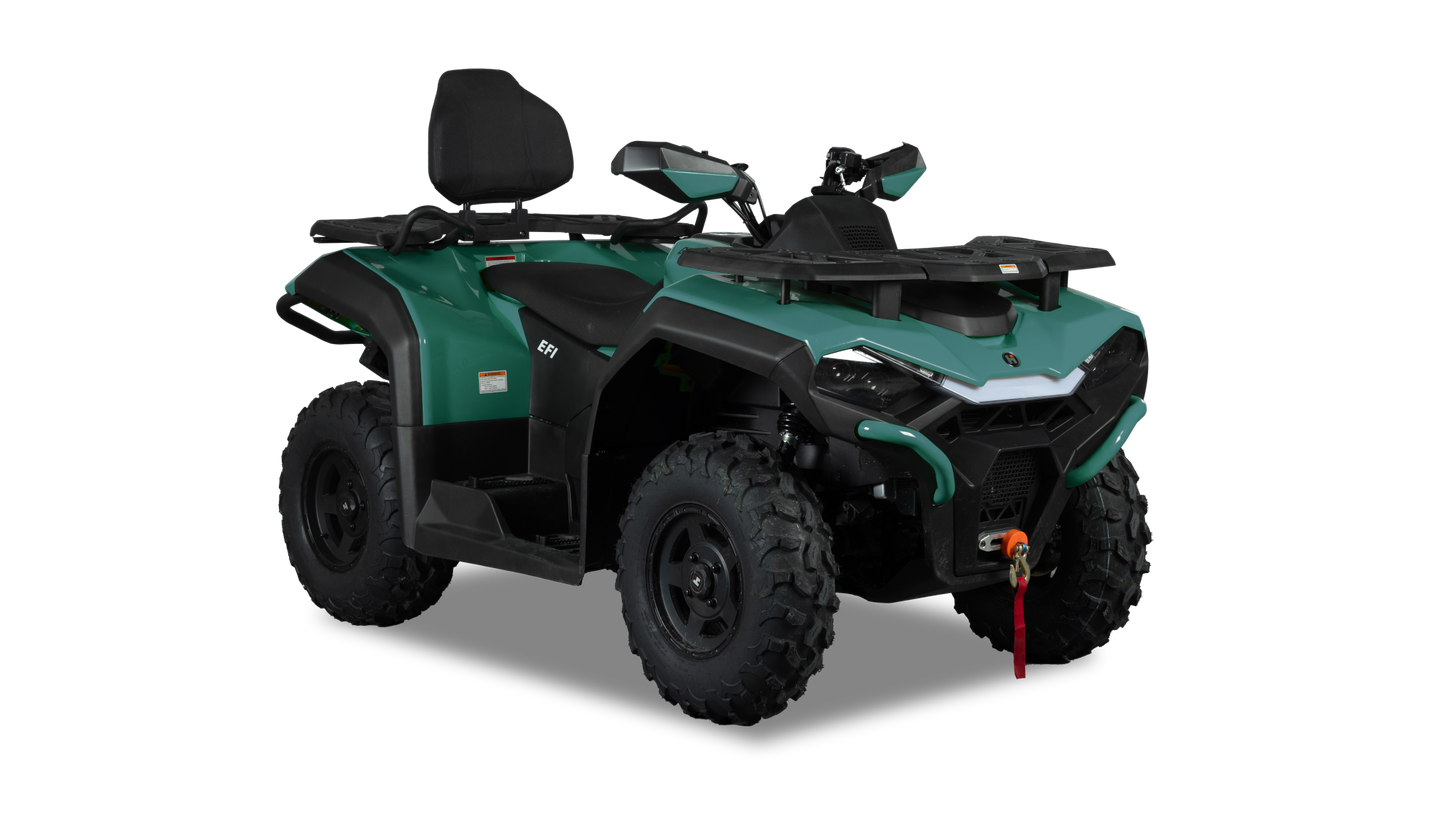

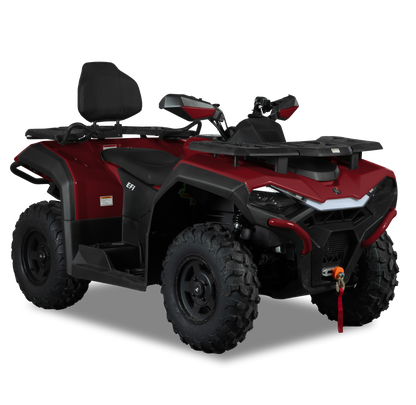

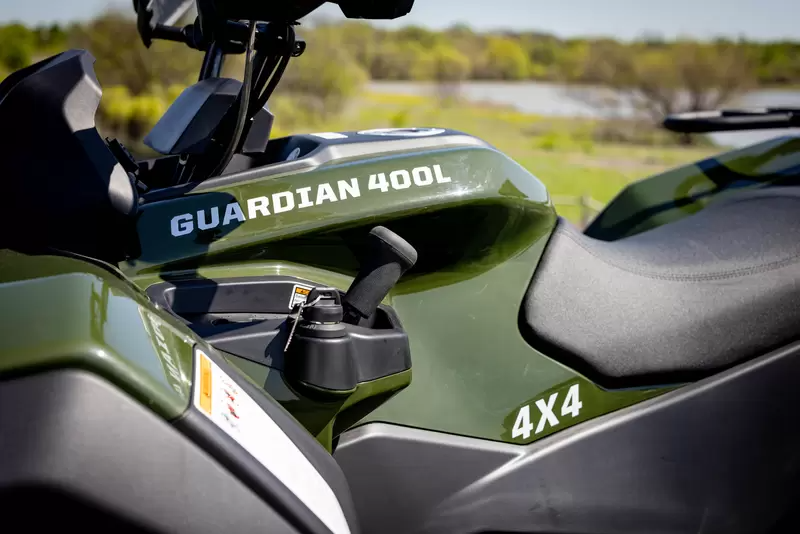

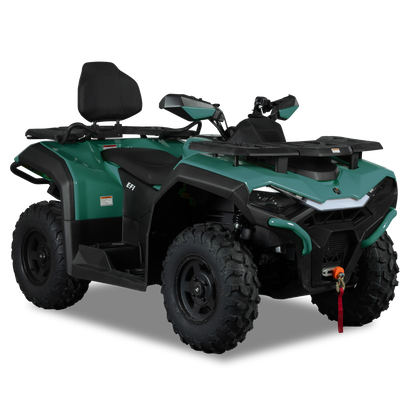

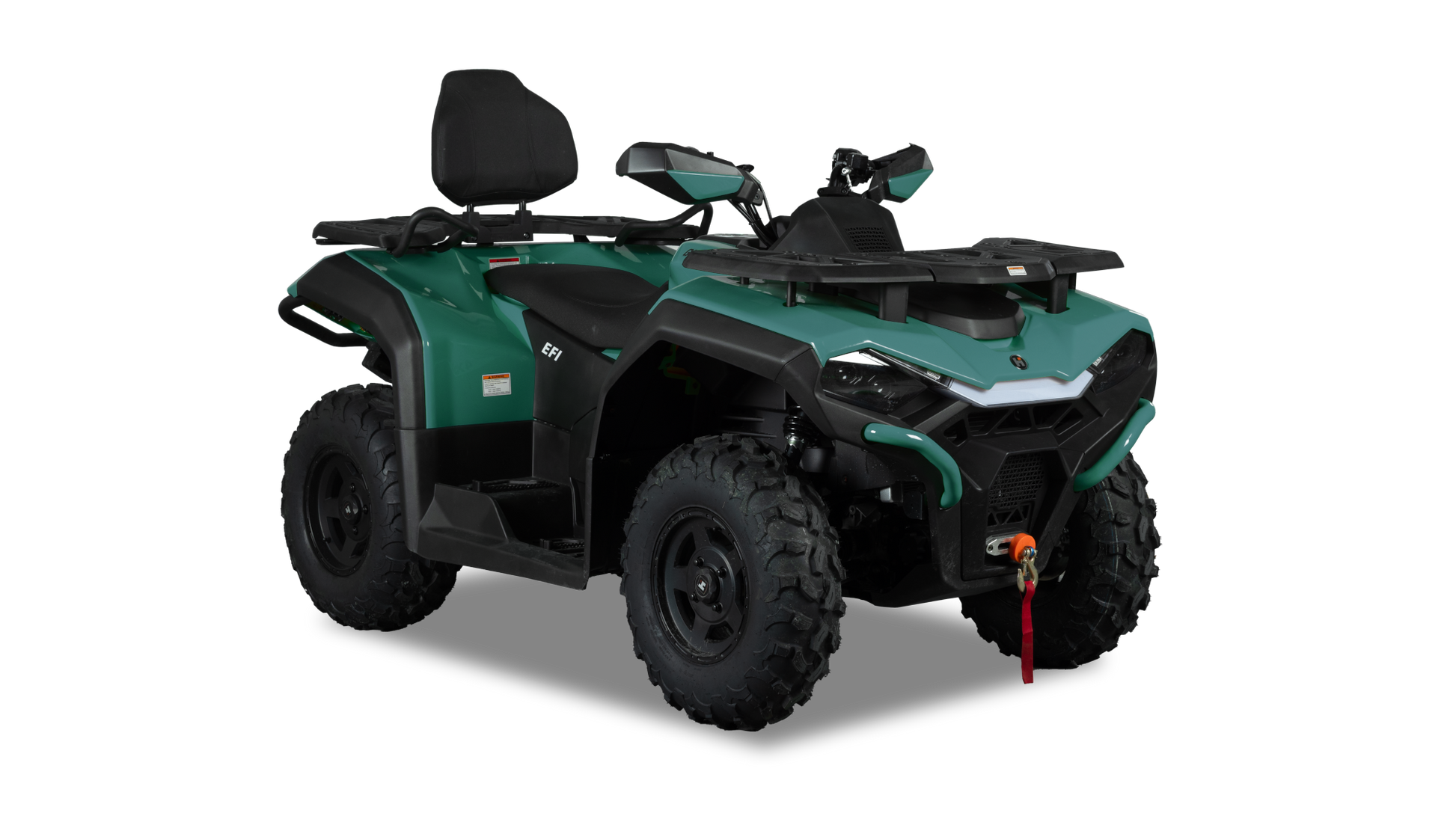

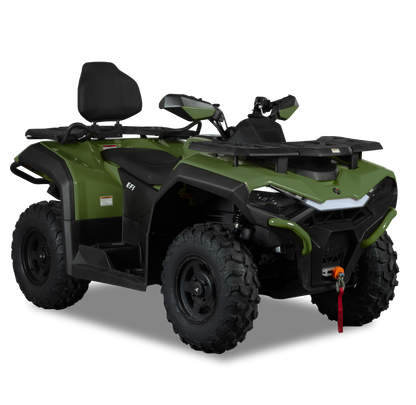

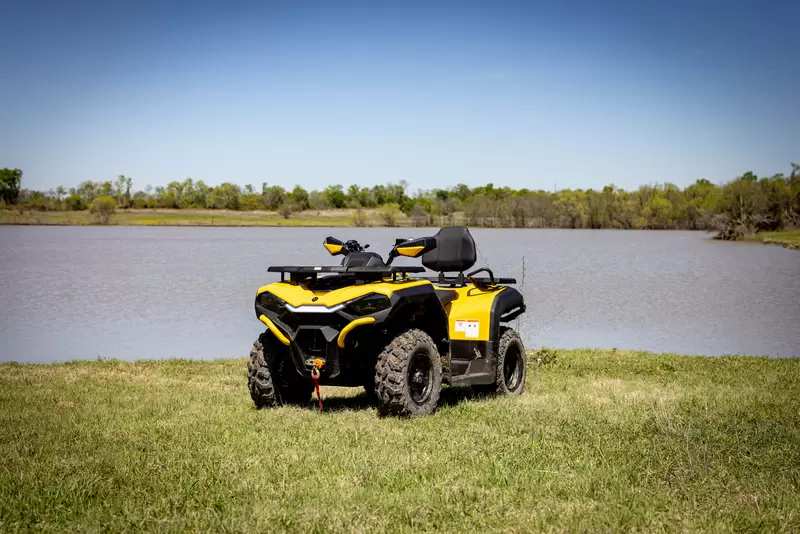

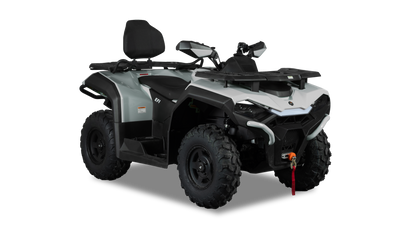

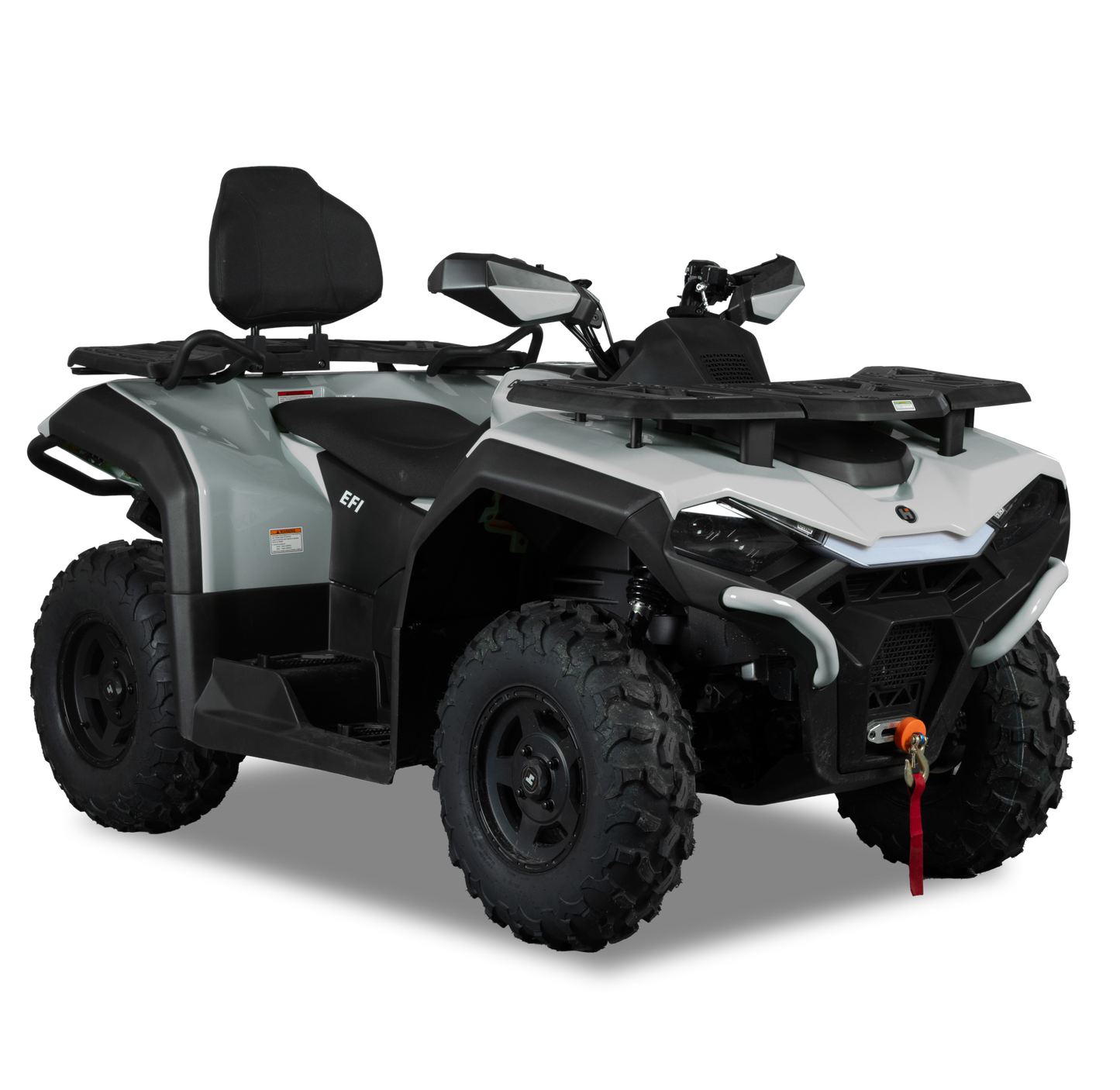

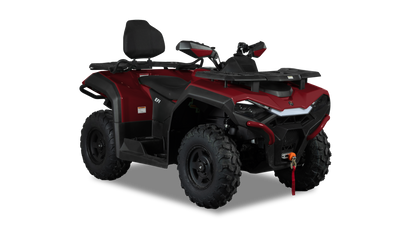

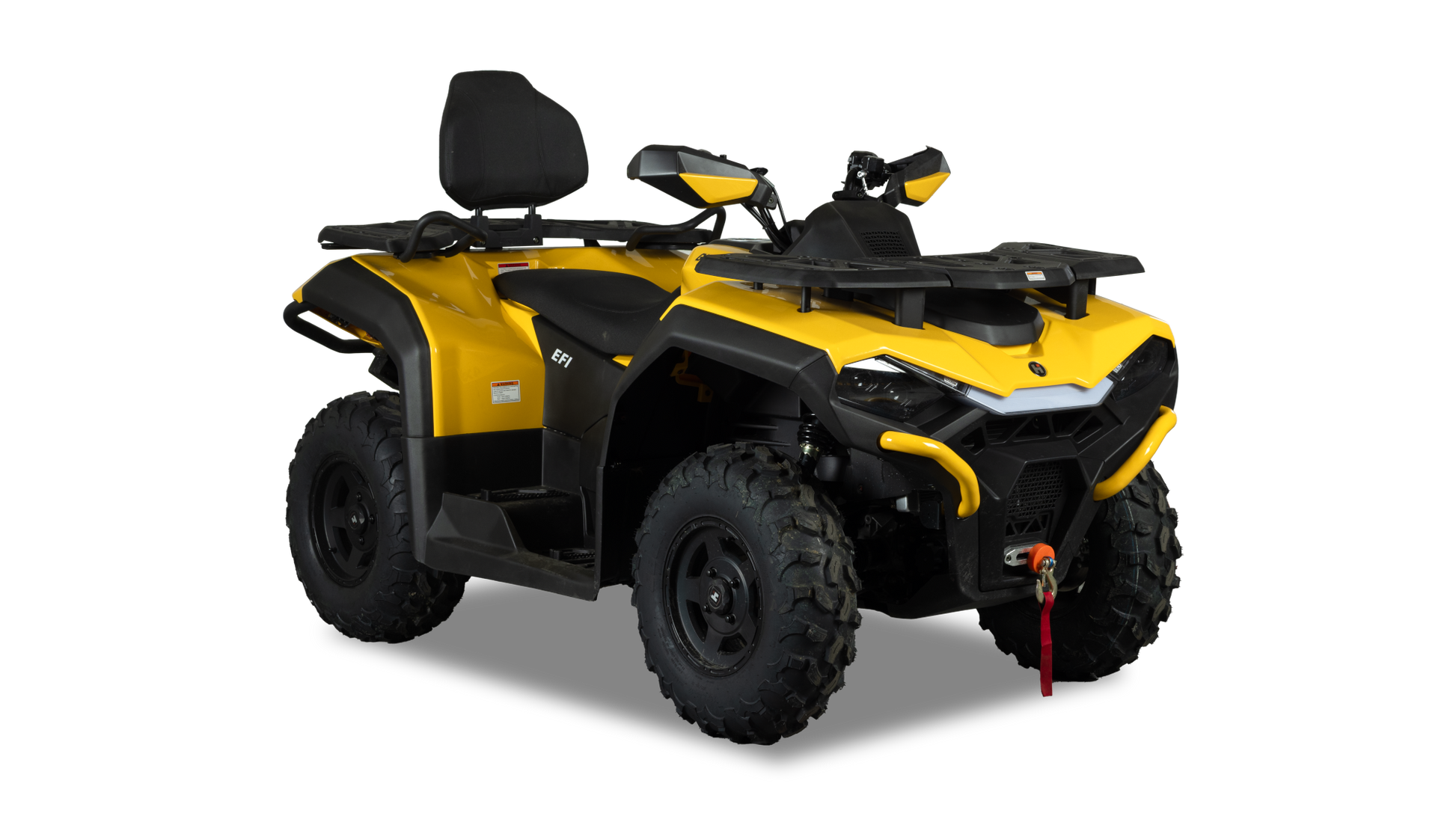

Hisun Guardian 400L ATV

The Hisun Guardian 400L is a rugged, versatile ATV crafted for both utility and recreation. With a liquid-cooled, 400cc SOHC engine paired to an automatic CVT transmission, the Guardian 400L offers responsive power delivery and smooth performance across mixed terrain. It features selectable 2WD/4WD drive modes and a locking front differential to optimize traction when you need it most.

Built to carry two riders comfortably, the 400L includes a spacious frame with front and rear cargo racks, robust suspension with dual A-arms and hydraulic shocks, and ventilated disc brakes for confident stopping. The vehicle also comes with standard features such as a 7" full-color LCD screen, integrated turn signals and horn, LED lighting, and a 2,500 lb winch. With a durable steel wheel design, a solid tow capacity, and a chassis engineered for harsh environments, the Guardian 400L is ready for farm work, trail riding, and everything in between.

Starting at: $5,699

Highlights / Key Features

• 400cc liquid-cooled, EFI engine with SOHC design
• Automatic CVT transmission with L/H/N/R/P
• Selectable 2WD/4WD with locking front differential
• Dual A-arm suspension with hydraulic shocks
• Ventilated disc brakes and mechanical parking brake
• 10.8″ ground clearance for trail and work performance

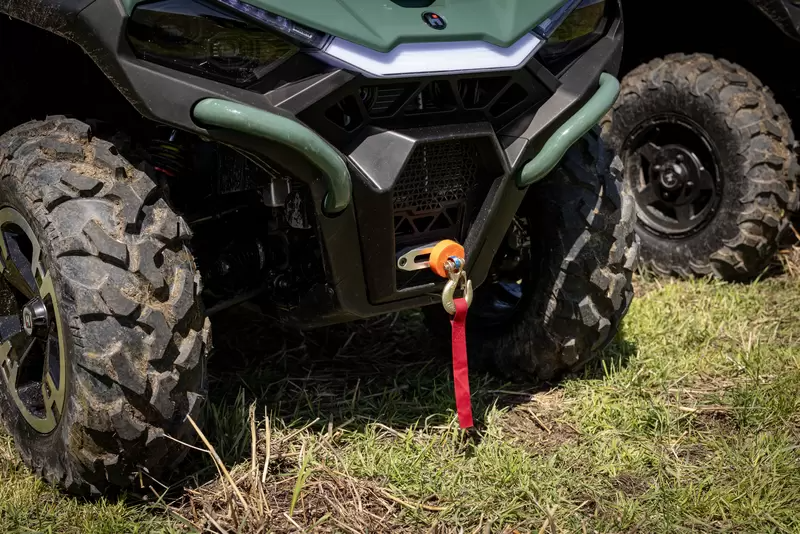

• 2,500 lb winch and 2,010 lb towing capacity
• 7″ LCD display, LED headlights, turn signals, and horn
• Front and rear cargo racks for hauling gear
• Backed by a 2-year limited warranty

Full Specifications

Engine

• Engine Type: 4-Stroke Single Cylinder SOHC
• Displacement: 400cc
• Fuel System: Electronic Fuel Injection
• Cooling: Liquid

Drive Train

• Transmission: Automatic CVT L/H/N/R/P
• Drive System: 2WD / 4WD
• Locking Differential: Front
• Final Drive: Shaft

Chassis / Suspension / Brakes

• Front Suspension: Dual A-Arm
• Rear Suspension: Dual A-Arm
• Shocks: Hydraulic
• Front / Rear Brakes: Ventilated Disc
• Parking Brake: Mechanical
• Front Tires: 24 x 8-12
• Rear Tires: 24 x 10-12
• Wheels: Steel

Dimensions

• Overall Vehicle (L x W x H): 93" x 47" x 57"
• Wheel Base: 52"
• Person Capacity: 2
• Fuel Capacity: 4.75 Gallons
• Tow Rating: 2,010 lbs
• Ground Clearance: 10.8"

Other

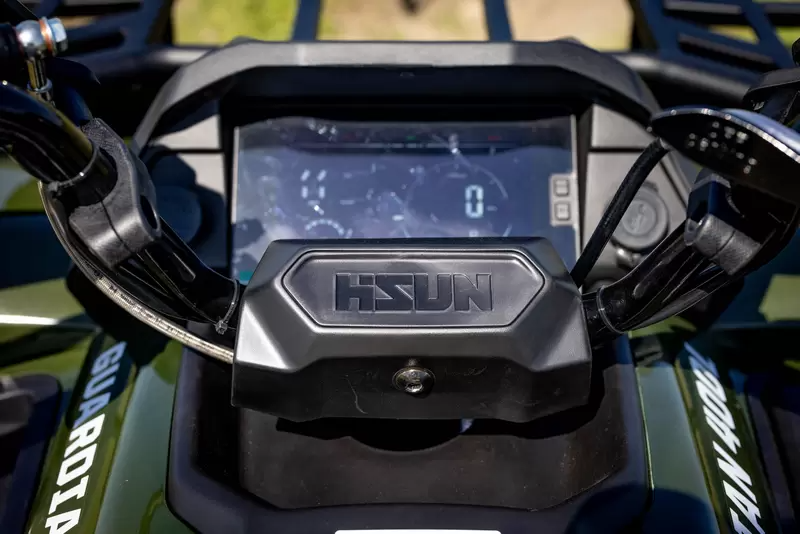

• Instrumentation: 7" LCD Screen
• Winch: 2,500 lbs
• Brake Lights: Yes
• Headlights: LED
• Turn Signals / Horn: Yes
• Cargo Racks: Front / Rear
• Electronic Power Steering: No
• Warranty: 2-Year Limited

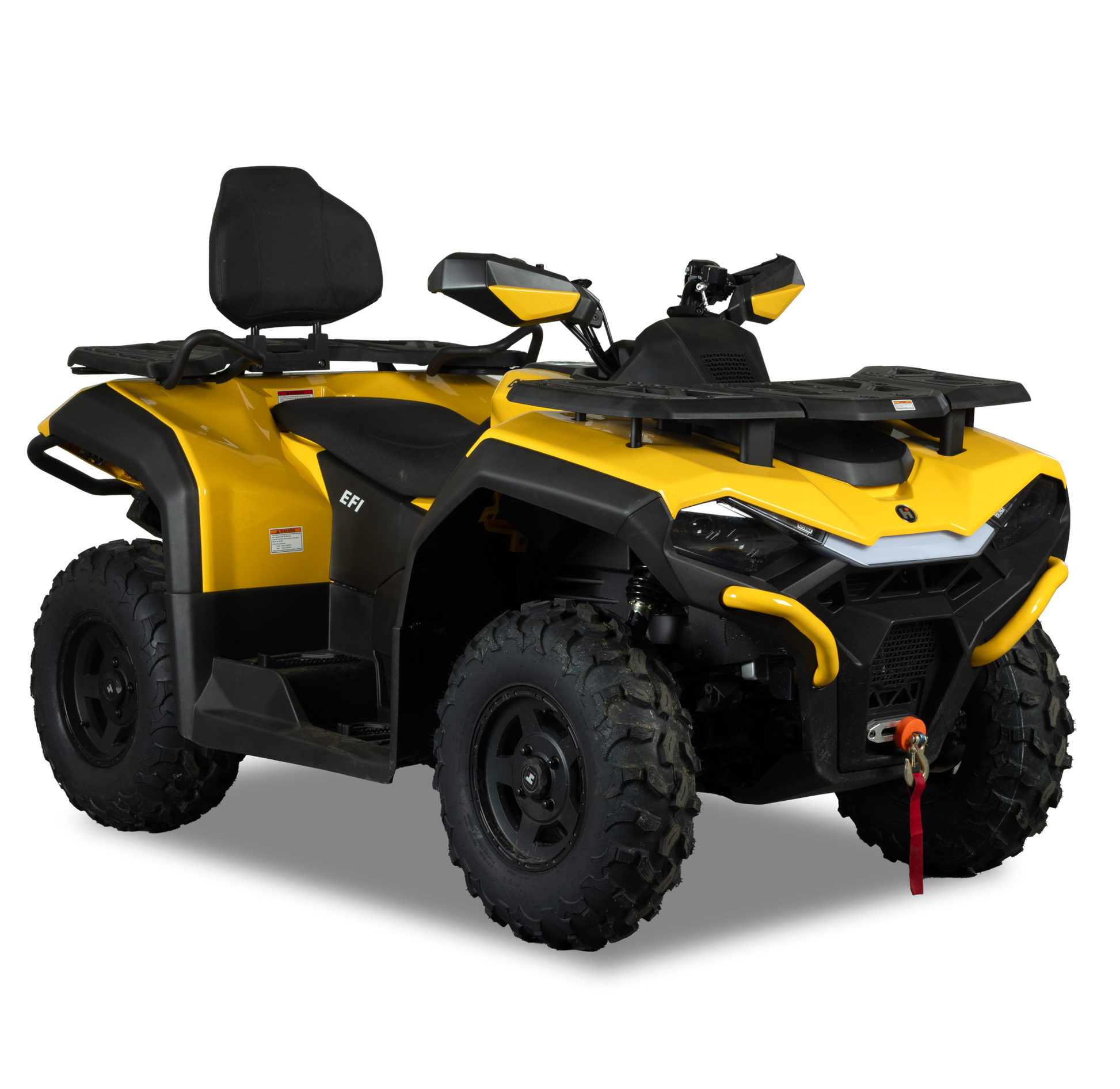

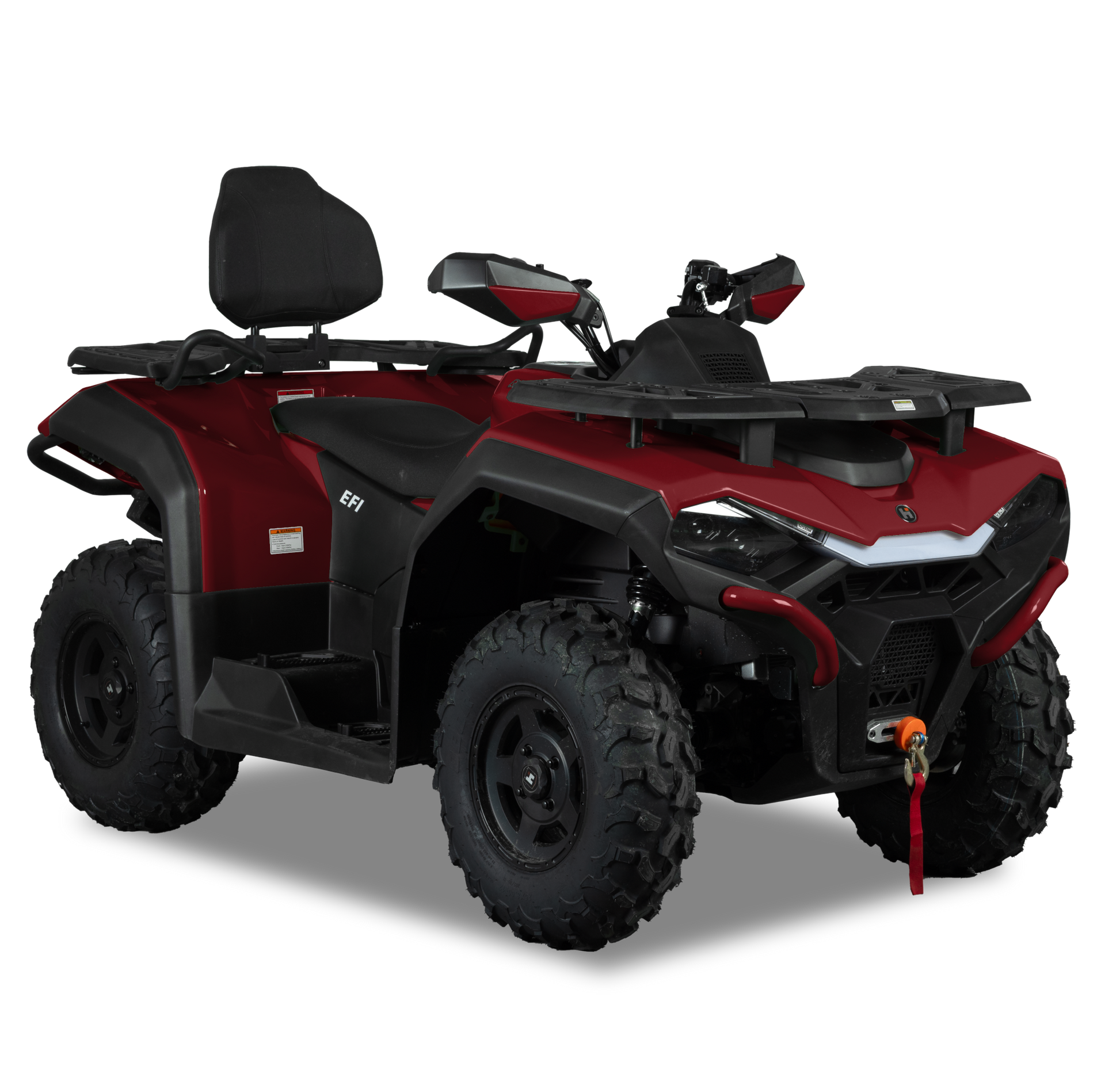

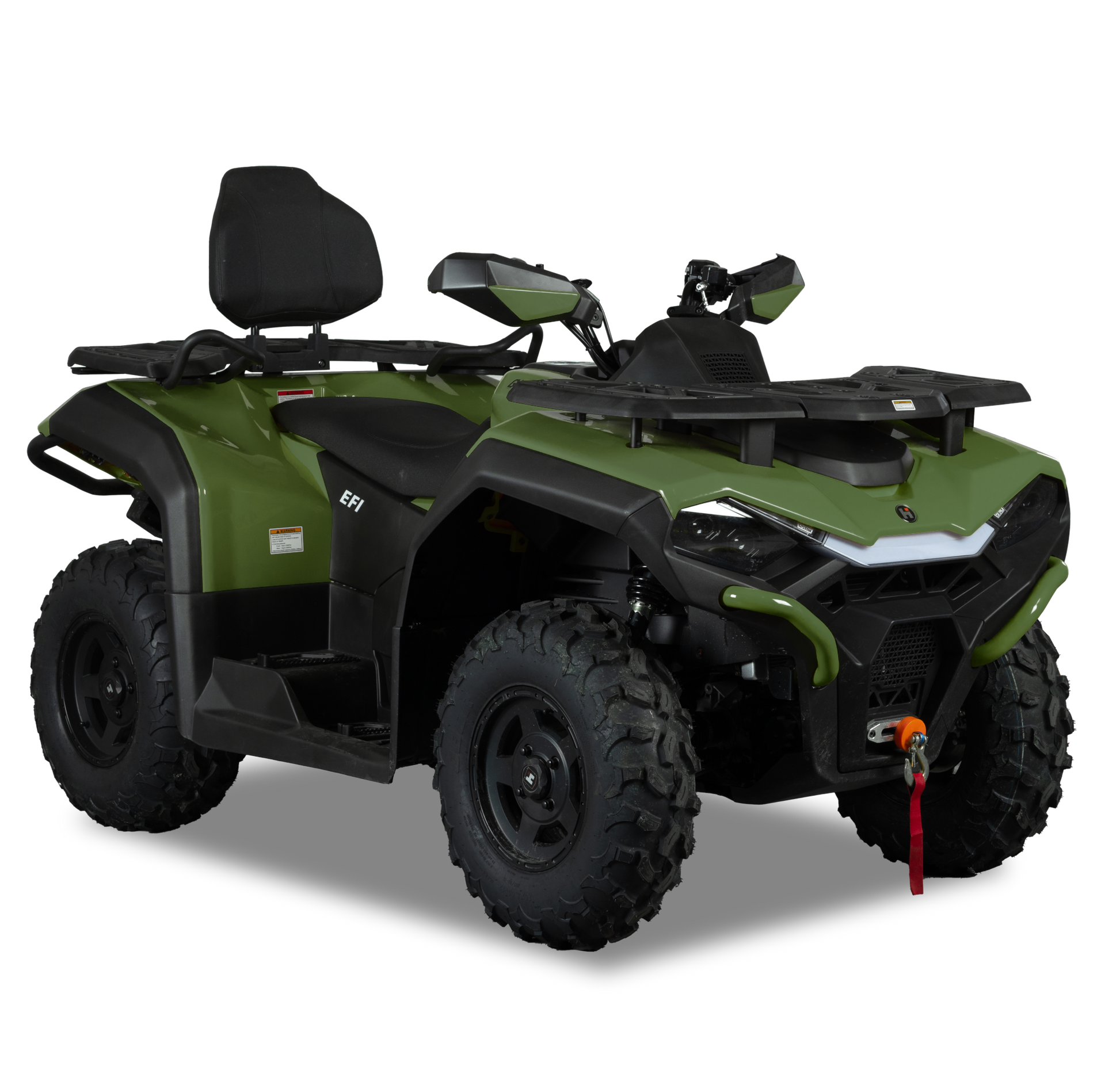

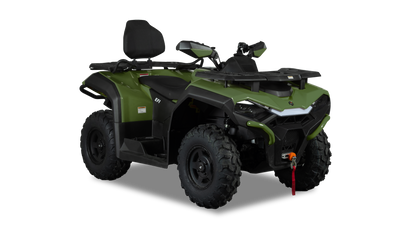

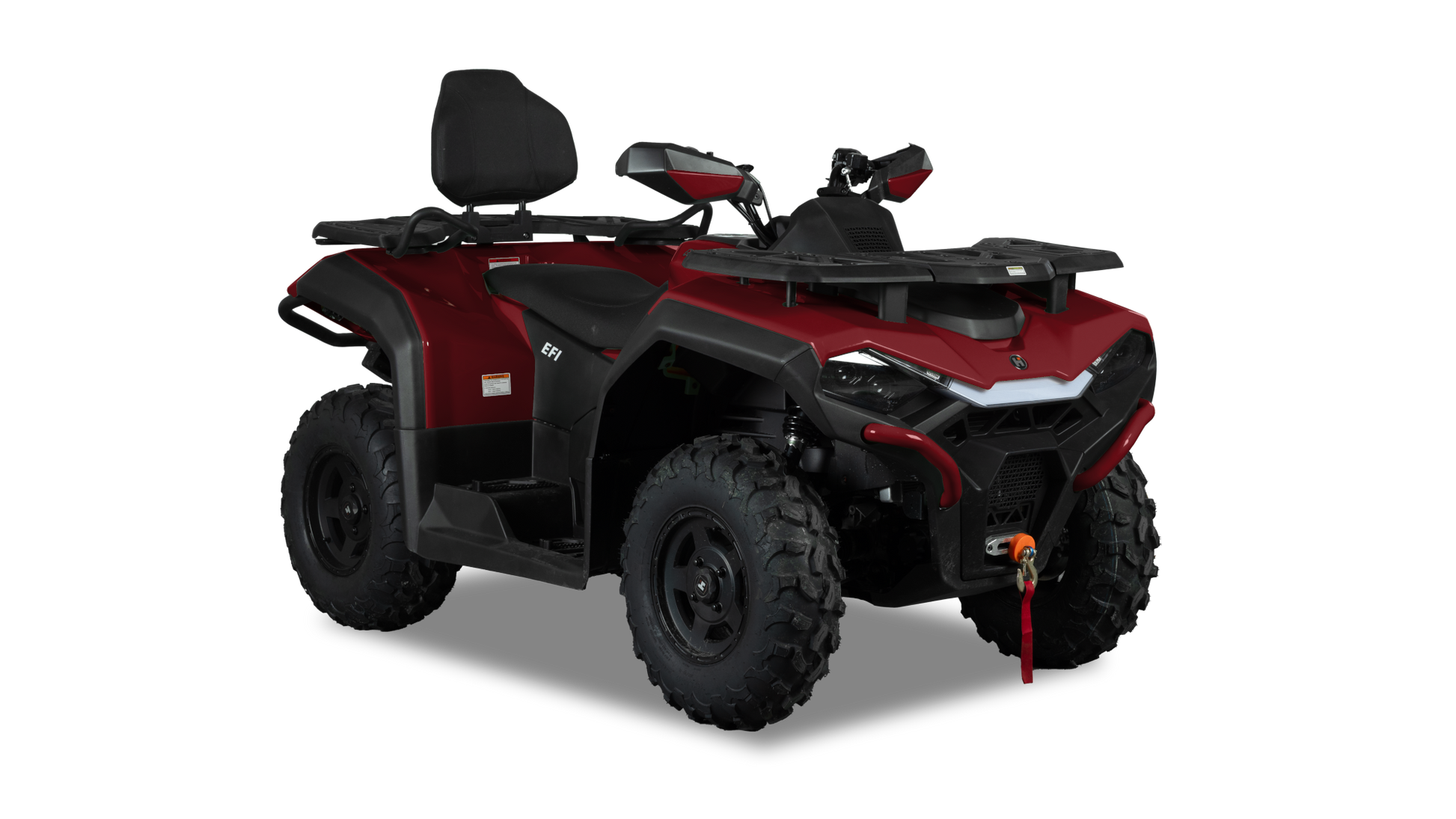

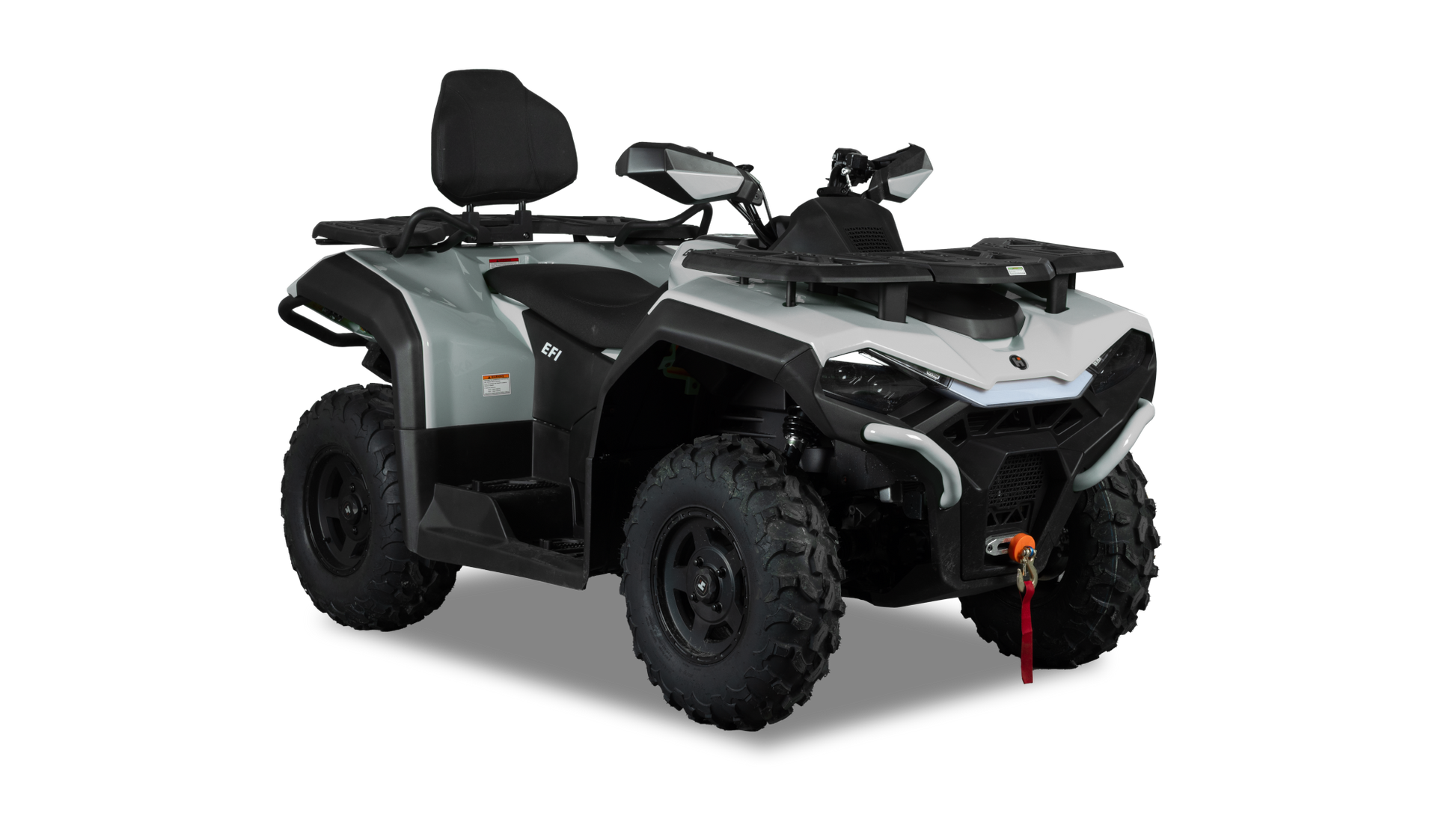

• Colors: Camo, Black, Red, Blue, Military Green, Jungle Green, Gray, Yellow
